83641022 | murrplastik

Tubing holders, M25/P21, (L x W x H) 38 x 38 x 39.25 mm, PC, black, for Murrflex corrugated pipe profiles, 83641022

Order No.: 47P1181
EAN: 4045005260383
MPN:
83641022
USH P21 SCHWARZ
Series: USH
83641022 murrplastik Cable Management Accessories Image 1
83641022 murrplastik Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
3.4867 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
174.34 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
3.4867 €

Tube holder, 83641022, murrplastik

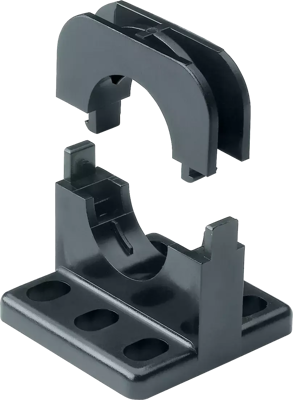

The USH holder consists of an upper and a lower part made of specially modified polycarbonate. The material is halogen, phosphor and cadmium-free. The holder is used as a quick and easy connection between control cabinet and door.

Features

  • Various fastening possibilities
  • Protective conduits can still be rotated in the holder
  • Pre-assembly of lower part possible
  • Suitable for all Murrflex corrugated conduit profiles

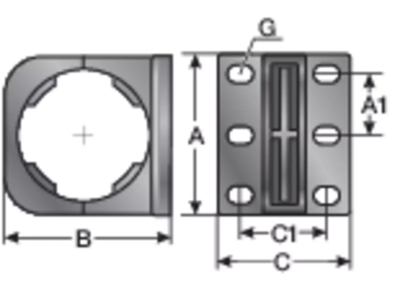

Technical specifications
Filter Property Value
Material PC
Suitable for Murrflex corrugated pipe profiles
max. operating temperature 100 °C
Version M25/P21
Width 38 mm
Height 39.25 mm
Product type tubing holders
min. operating temperature -30 °C
Colour black
Length 38 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39174000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
