83641019 | murrplastik

Tubing holders, M16/P11, (L x W x H) 38 x 38 x 39.5 mm, PC, black, for Murrflex corrugated pipe profiles, 83641019

Order No.: 47P1179
EAN: 4045005265470
MPN:
83641019
USH 11 SCHWARZ
Series: USH
83641019 murrplastik Cable Management Accessories Image 1
83641019 murrplastik Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
2.9988 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
149.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
2.9988 €

Tube holder, 83641019, murrplastik

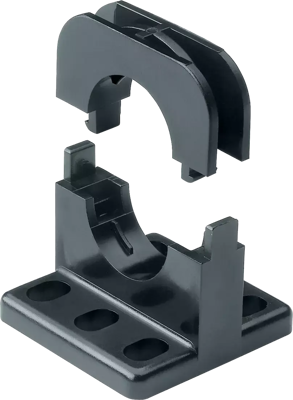

The USH holder consists of an upper and a lower part made of specially modified polycarbonate. The material is halogen, phosphor and cadmium-free. The holder is used as a quick and easy connection between control cabinet and door.

Features

  • Various fastening possibilities
  • Protective conduits can still be rotated in the holder
  • Pre-assembly of lower part possible
  • Suitable for all Murrflex corrugated conduit profiles
Technical specifications
Product type tubing holders
Colour black
Material PC
min. operating temperature -30 °C
max. operating temperature 100 °C
Suitable for Murrflex corrugated pipe profiles
Height 39.5 mm
Length 38 mm
Width 38 mm
Version M16/P11
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
