83641018 | murrplastik

Tubing holders, M50/P48, (L x W x H) 76.2 x 59.7 x 77.2 mm, PC, gray, for Murrflex corrugated pipe profiles, 83641018

Order No.: 47P1178
EAN: 4045005154088
MPN:
83641018
USH P48 GRAU
Series: USH
83641018 murrplastik Cable Management Accessories Image 1
83641018 murrplastik Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
5.2479 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
262.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
5.2479 €

Tube holder, 83641018, murrplastik

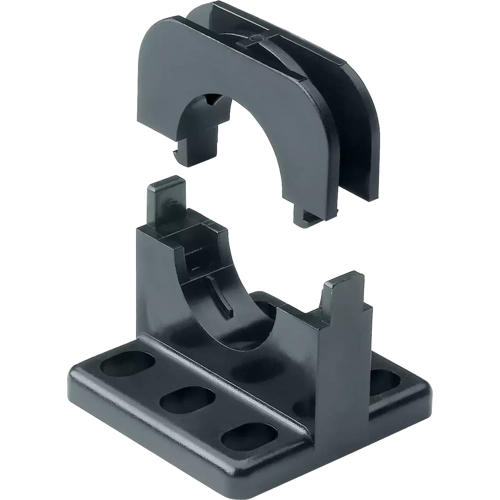

The USH holder consists of an upper and a lower part made of specially modified polycarbonate. The material is halogen, phosphor and cadmium-free. The holder is used as a quick and easy connection between control cabinet and door.

Features

  • Various fastening possibilities
  • Protective conduits can still be rotated in the holder
  • Pre-assembly of lower part possible
  • Suitable for all Murrflex corrugated conduit profiles

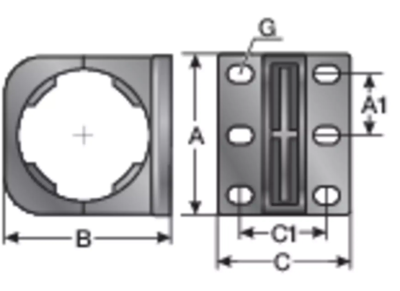

Technical specifications
Product type tubing holders
Colour gray
Material PC
min. operating temperature -30 °C
max. operating temperature 100 °C
Suitable for Murrflex corrugated pipe profiles
Height 77.2 mm
Length 76.2 mm
Width 59.7 mm
Version M50/P48
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
