83621615 | murrplastik

Universal holder, with foot, (L x W x H) 51 x 60 x 48 mm, PA, light gray, for M32/P29, 83621615

Order No.: 47P1460
EAN: 4045005229397
MPN:
83621615
UHF 29 LICHTGRAU
Series: UHF
83621615 murrplastik Cable Management Accessories Image 1
83621615 murrplastik Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
2.7489 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2.75 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7489 €
10 pcs.
2.5109 €
50 pcs.
2.3443 €
100 pcs.
2.1777 €
*incl. VAT plus shipping costs
Subject to prior sale

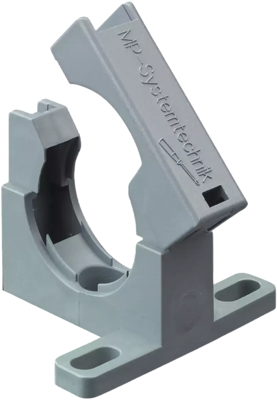

Universal holder, 83621615, murrplastik

The UHF holder is made of specially modified polyamide. The material is halogen, phosphor and cadmium-free. The holder is used as a quick and easy connection between control cabinet and door.

Features

  • Various fastening possibilities
  • Protective conduits can still be rotated in the holder
  • Pre-assembly of lower part possible
  • High tensile strength thanks to double webs
Technical specifications
Filter Property Value
Material PA
Suitable for M32/P29
max. operating temperature 110 °C
Version with foot
Width 60 mm
Height 48 mm
Product type universal holder
min. operating temperature -40 °C
Colour light gray
Length 51 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39174000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
