83621611 | murrplastik

Universal holder, with foot, (L x W x H) 35 x 38 x 35 mm, PA, light gray, for M20/P16, 83621611

Order No.: 47P1456
EAN: 4045005269874
MPN:
83621611
UHF 16 LICHTGRAU
Series: UHF

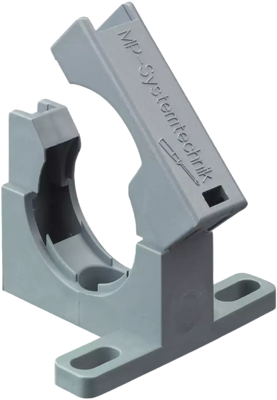

83621611 murrplastik Cable Management Accessories Image 1

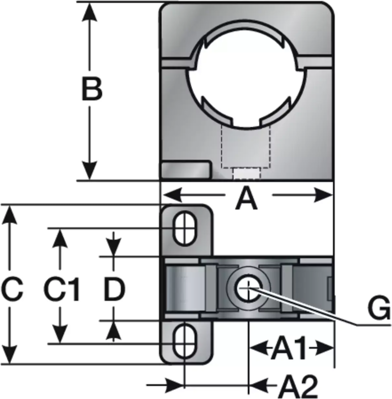

83621611 murrplastik Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
1.7374 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7374 €
10 pcs.
1.5827 €
50 pcs.
1.4756 €
100 pcs.
1.3804 €
*incl. VAT plus shipping costs
Subject to prior sale

Universal holder, 83621611, murrplastik

The UHF holder is made of specially modified polyamide. The material is halogen, phosphor and cadmium-free. The holder is used as a quick and easy connection between control cabinet and door.

Features

  • Various fastening possibilities
  • Protective conduits can still be rotated in the holder
  • Pre-assembly of lower part possible
  • High tensile strength thanks to double webs
Technical specifications
Filter Property Value
max. operating temperature 110 °C
Length 35 mm
min. operating temperature -40 °C
Height 35 mm
Colour light gray
Material PA
Width 38 mm
Suitable for M20/P16
Product type universal holder
Version with foot
Logistics
Property Value
Customs tariff number 39174000
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
