83621256 | murrplastik

Universal holder, halogen free, (L x W x H) 57 x 16 x 38 mm, PA, black, for M25/P21, 83621256

Order No.: 47P1506
EAN: 4045005226419
MPN:
83621256
UHG P21 SCHWARZ
Series: UHG

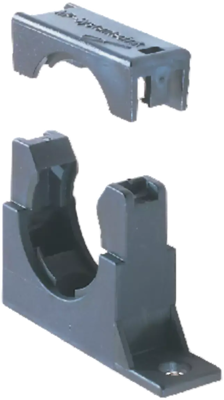

83621256 murrplastik Cable Management Accessories Image 1
83621256 murrplastik Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
1.4994 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.50 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4994 €
10 pcs.
1.3685 €
50 pcs.
1.2733 €
100 pcs.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale

Universal holder, 83621256, murrplastik

The UHG holder is made of specially modified polyamide. The material is halogen, phosphor and cadmium-free. The holder is used to fix cable protection conduits to equipment and machinery.

Features

  • The additional flap can be used to prevent rotation of the holder
  • Protective conduit is simply snapped in
  • Optimum connection of conduit to holder thanks to double webs of holder
  • Optional BL bracket for applications with high stresses
Technical specifications
Filter Property Value
Material PA
Suitable for M25/P21
max. operating temperature 110 °C
Version halogen free
Width 16 mm
Height 38 mm
Product type universal holder
min. operating temperature -40 °C
Colour black
Length 57 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39174000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
