83621120 | murrplastik

Universal holder, halogen free, (L x W x H) 51 x 16 x 43 mm, PA, gray, for M32/P29, 83621120

Order No.: 47P1489
EAN: 4045005259974
MPN:
83621120
UH P29 GRAU
Series: UH

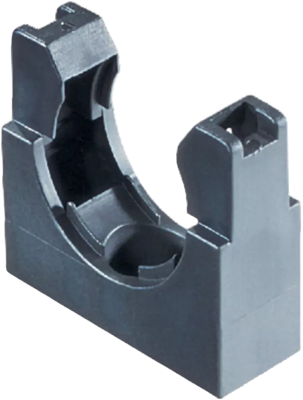

83621120 murrplastik Cable Management Accessories Image 1
83621120 murrplastik Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
1.8683 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.87 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8683 €
10 pcs.
1.7017 €
50 pcs.
1.5946 €
100 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale

Universal holder, 83621120, murrplastik

The UH holder is made of specially modified polyamide. The material is halogen, phosphor and cadmium-free. The holder is used to fix cable protection conduits to equipment and machinery.

Features

  • Quick assembly thanks to single-hole fixing
  • Protective conduit is simply snapped in
  • Optimum connection of conduit to holder thanks to double webs of holder
  • Optional BL bracket for applications with high stresses
Technical specifications
Filter Property Value
Material PA
Suitable for M32/P29
max. operating temperature 110 °C
Version halogen free
Width 16 mm
Height 43 mm
Product type universal holder
min. operating temperature -40 °C
Colour gray
Length 51 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39174000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
