83342052 | murrplastik

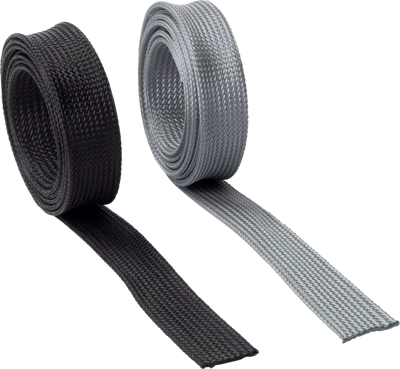

Polyester braided sleeve, range 5-9 mm, gray, halogen free, -55 to 150 °C, 83342052

Order No.: 47P0122
EAN: 4045005025326
MPN:
83342052
GF-P-06 GRAU
Series: GF-P
83342052 murrplastik Braided Sleeving
Image may differ
Unit Price (€ / mtr.)
0.8806 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
176.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 mtr.
0.8806 €

Braided conduit, 83342052, murrplastik

The 83342052 braided conduit is made of specially modified polyester. With this material and the special braiding, the conduit is extremely durable and elastic in both the radial and axial directions. It can be used to bundle and protect a large number of cables and individual wires of all types. The elastic braiding means that configuration of the conduit can be very variable.

47P0120

Features

  • Very good mechanical and thermal resistance
  • Good chemical resistance
  • Very low levels of smoke gas
  • Very high abrasion resistance
Technical specifications
Material polyester
Application range 5-9 mm
Colour gray
Version polyester braided sleeve
Optical Coverage 86 %
Halogen free Yes
min. operating temperature -55 °C
max. operating temperature 150 °C
Logistics
Customs tariff number 58081000
Country of origin DE
Original Packaging Reel with 200 meters
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
