MLGO63-10000 | Mundorf

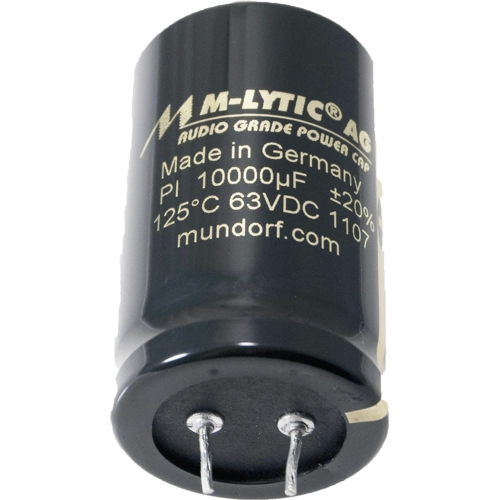

Electrolytic capacitor, 10000 µF, 63 V (DC), ±20 %, radial, pitch 10 mm, Ø 30 mm, MLGO63-10000
No longer in assortment
Unit Price (€ / pc.)
15.6366 € *
Available: 2 pcs.
Electrolytic capacitor for high-end applications, type Mundorf MLytic AG.
Especially for use in small amps and preamps, high thermal conductivity, ultra-thin layers; Dielectric: aluminum oxide. Capacitance tolerance: ±20%. Operating temperatures at 16 to 63 V: –40 to +125 °C, at 80 to 160 V: –25 to 105 °C. Useful life at +125/+105 °C: 1000/2000 h.
Rated voltage 63 VDC.
Technical attributes (type, capacitance, dimensions): MLGO63-10000, 10000 µF, 30 x 50 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 30 mm | |
| Ripple current | 3.5 A | |
| max. operating temperature | 125 °C | |
| Rated voltage (DC) | 63 V | |
| Length | 50 mm | |
| Connection | PCB connection | |
| Grid | 10 mm | |
| Capacity | 10000 µF | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±20 % | |
| ESR (Equivalent Series Resistance) | 24 mΩ | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
