3603000010 | Multi-Box
Cable gland flange, cable Ø 4.1 to 8.1 mm, PA, light gray, 3603000010
Unit Price (€ / pc.)
28.4648 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
28.46 € *
Price list
Quantity
Price per unit*
1 pcs.
28.4648 €
5 pcs.
25.6088 €
10 pcs.
23.0503 €
50 pcs.
20.7417 €
*incl. VAT plus shipping costs
Subject to prior sale

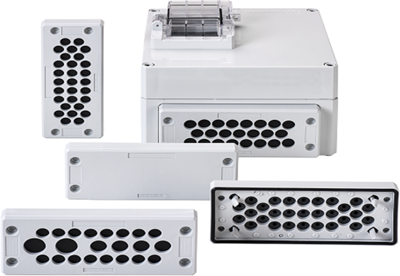

Modular cable feedthrough systems, IP 65, type Multibox MBFL.

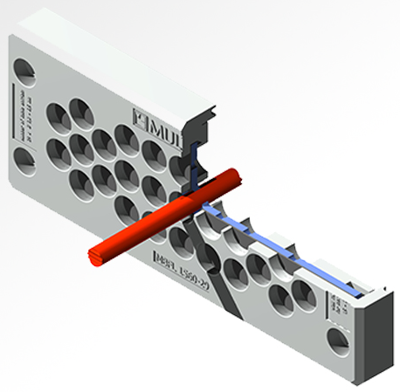

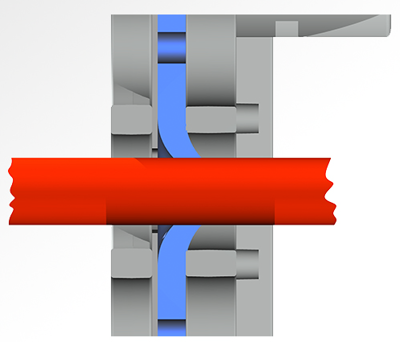

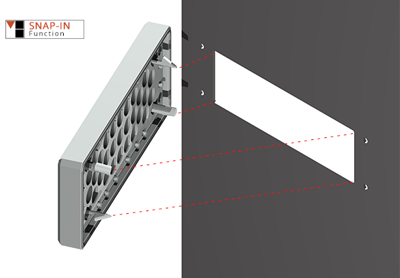

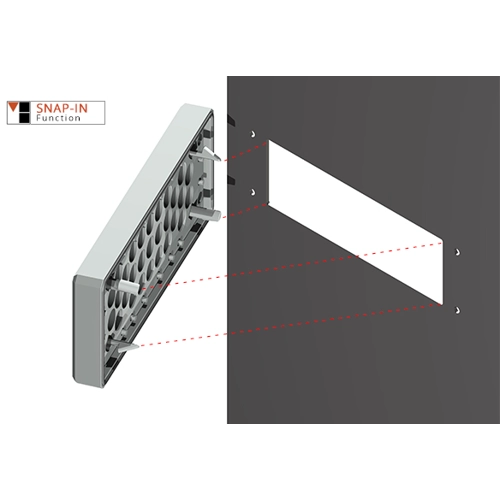

Suitable for the rapid feeding and sealing of cables, lines, hoses, pneumatic and hydraulic tubing. Simple installation of the flange plate; Panel thickness: 1.5 to 2,0 mm, Material: polyamide 6. Degree of protection: IP 65. Operating temperatures: –30 to +90 °C. Color: light-gray, RAL 7035.
Technical attributes (type, cable inlet): MBFL 23, 23 x 4.1 to 8.1 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 90 °C | |
| Length | 148 mm | |
| min. operating temperature | -30 °C | |
| Colour | light gray | |
| min. cable diameter | 4.1 mm | |
| Material | PA | |
| max. Cable diameter | 8.1 mm | |
| Product type | cable gland flange |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
