DELTA-BOX 3300 | Multi-Box

Die-cast aluminum enclosure, (L x W x H) 300 x 120 x 35 mm, black (RAL 9005), IP43, DELTA-BOX 3300

Order No.: 66H2876
EAN: 4099889543773
MPN:
DELTA-BOX 3300
1501101600
Series: DELTA-BOX

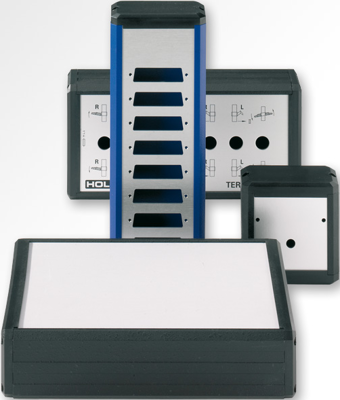

DELTA-BOX 3300 Multi-Box General Purpose Enclosures Image 1

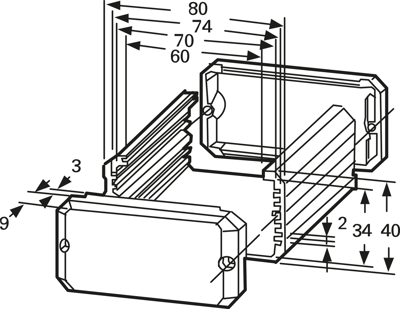

DELTA-BOX 3300 Multi-Box General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
47.6952 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
47.70 € *
Price list
Quantity
Price per unit*
1 pcs.
47.6952 €
5 pcs.
44.8273 €
15 pcs.
43.1137 €
50 pcs.
41.1978 €
150 pcs.
39.4961 €
*incl. VAT plus shipping costs
Subject to prior sale

Aluminum enclosure, DELTA-BOX 3300, Multi-Box

Delta-Box-Enclosure is made of aluminium profile and unite a compact and nicely shaped design with extremely good stability. Groove guides in the base allow convenient assembly of PCBs in European card format or other electronic components. The installation of a battery compartment MB 92 is possible in the end cap. The aluminium front plates are 2 mm thick and silver anodised. The end caps are made of impact-proof ABS.

Technical specifications
Filter Property Value
Width 120 mm
Material die-cast aluminum
Degree of protection (IP) IP43
Height 35 mm
Colour black
Length 300 mm
RAL number 9005
Logistics
Property Value
Country of origin DE
Customs tariff number 76169910
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
