DELTA-BOX 210 | Multi-Box

Die-cast aluminum enclosure, (L x W x H) 214 x 80 x 40 mm, black (RAL 9005), IP43, DELTA-BOX 210

Order No.: 66H286
EAN: 4099889543698
MPN:
DELTA-BOX 210
1501100400
Series: DELTA-BOX
DELTA-BOX 210 Multi-Box General Purpose Enclosures Image 1
DELTA-BOX 210 Multi-Box General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
32.5465 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
32.55 € *
Price list
Quantity
Price per unit*
1 pcs.
32.5465 €
10 pcs.
29.2859 €
50 pcs.
26.3585 €
100 pcs.
23.7286 €
*incl. VAT plus shipping costs
Subject to prior sale

Aluminum enclosure, DELTA-BOX 210, Multi-Box

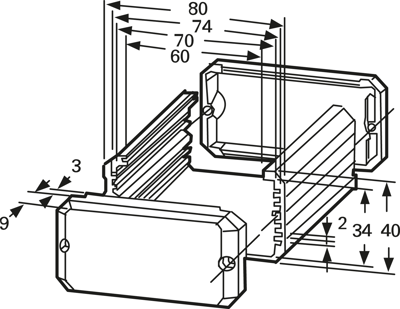

Delta-Box-Enclosure is made of aluminium profile and unite a compact and nicely shaped design with extremely good stability. Groove guides in the base allow convenient assembly of PCBs in European card format or other electronic components. The installation of a battery compartment MB 92 is possible in the end cap. The aluminium front plates are 2 mm thick and silver anodised. The end caps are made of impact-proof ABS.

Technical specifications
Filter Property Value
RAL number 9005
Degree of protection (IP) IP43
Material die-cast aluminum
Width 80 mm
Height 40 mm
Colour black
Length 214 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 76042990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
