DELTA-BOX 130 | Multi-Box

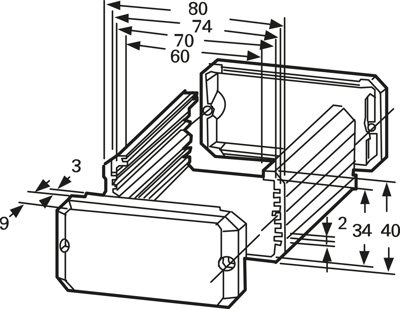

Die-cast aluminum enclosure, (L x W x H) 134 x 80 x 40 mm, black (RAL 9005), IP43, DELTA-BOX 130

Order No.: 66H282
EAN: 4099889543674
MPN:
DELTA-BOX 130
1501100200
Series: DELTA-BOX
DELTA-BOX 130 Multi-Box General Purpose Enclosures Image 1
DELTA-BOX 130 Multi-Box General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
23.7524 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
23.75 € *
Price list
Quantity
Price per unit*
1 pcs.
23.7524 €
10 pcs.
20.8964 €
50 pcs.
19.4684 €
150 pcs.
18.6116 €
500 pcs.
17.6715 €
*incl. VAT plus shipping costs
Subject to prior sale

Aluminum enclosure, DELTA-BOX 130, Multi-Box

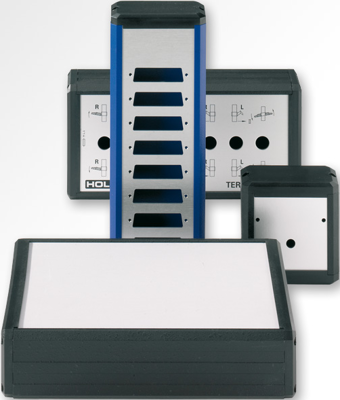

Delta-Box-Enclosure is made of aluminium profile and unite a compact and nicely shaped design with extremely good stability. Groove guides in the base allow convenient assembly of PCBs in European card format or other electronic components. The installation of a battery compartment MB 92 is possible in the end cap. The aluminium front plates are 2 mm thick and silver anodised. The end caps are made of impact-proof ABS.

Technical specifications
Filter Property Value
Height 40 mm
Material die-cast aluminum
Length 134 mm
Width 80 mm
Degree of protection (IP) IP43
Colour black
RAL number 9005
Logistics
Property Value
Customs tariff number 76169910
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
