DELTA-BOX 1180 | Multi-Box

Die-cast aluminum enclosure, (L x W x H) 184 x 106 x 50 mm, black (RAL 9005), IP43, DELTA-BOX 1180

Order No.: 66H2864
EAN: 4099889543711
MPN:
DELTA-BOX 1180
1501100600
Series: DELTA-BOX
DELTA-BOX 1180 Multi-Box General Purpose Enclosures Image 1
DELTA-BOX 1180 Multi-Box General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
36.3069 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
36.31 € *
Price list
Quantity
Price per unit*
1 pcs.
36.3069 €
10 pcs.
32.6774 €
50 pcs.
29.4168 €
100 pcs.
26.4775 €
*incl. VAT plus shipping costs
Subject to prior sale

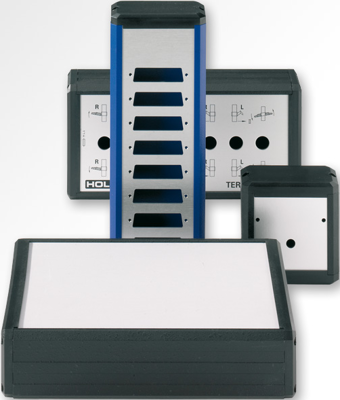

Aluminum enclosure, DELTA-BOX 1180, Multi-Box

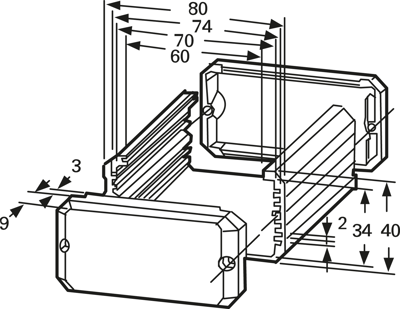

Delta-Box-Enclosure is made of aluminium profile and unite a compact and nicely shaped design with extremely good stability. Groove guides in the base allow convenient assembly of PCBs in European card format or other electronic components. The installation of a battery compartment MB 92 is possible in the end cap. The aluminium front plates are 2 mm thick and silver anodised. The end caps are made of impact-proof ABS.

Technical specifications
Filter Property Value
Height 50 mm
Colour black
Material die-cast aluminum
Degree of protection (IP) IP43
Length 184 mm
RAL number 9005
Width 106 mm
Logistics
Property Value
Customs tariff number 76169910
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
