BU-46C-023Z | Mueller Electric
Battery clip, 75 A, BU-46C-023Z
Order No.: 30F1902
EAN: 4099889762211
MPN:
BU-46C-023Z
Unit Price (€ / pc.)
2.6299 € *
Available: 4 pcs.
Next delivery: 21 pcs. on 2025-07-18
Total Price:
2.63 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6299 €
25 pcs.
2.4395 €
50 pcs.
2.2491 €
100 pcs.
2.0944 €
250 pcs.
1.9754 €
*incl. VAT plus shipping costs
Subject to prior sale

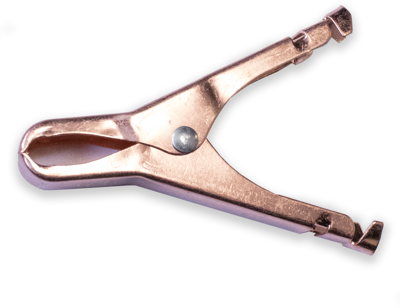

Battery clip, BU-46C-023Z, Mueller
The BU-46C-023Z is a solid copper, miniature battery clip. Can connect to wire up to 10 AWG via crimp or solder connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 74 mm | |
| Version | battery clip | |
| Connection | solder/crimp connection | |
| Material | copper | |
| max. clamping range | 29 mm | |
| Rated current | 75 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
