BU-75K | Mueller Electric
Kelvin alligator clip, black, max. 3 mm, L 41.3 mm, screw connection, BU-75K
Order No.: 30F1911
EAN: 4099889416558
MPN:
BU-75K
Unit Price (€ / pc.)
18.5402 € *
Available: 20 pcs.

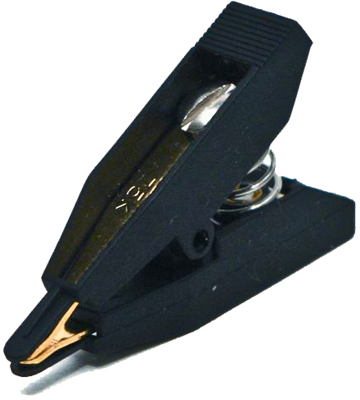

Kelvin-Alligator clip, BU-75K, Mueller
The BU-75K is insulated miniature Kelvin clip. The two jaws are electrically isolated from each other. The gold-plated contacts offer outstanding connections with minimal resistance. Wire can be attached to the jaws of the clip using the included screws.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | brass | |
| Length | 41.3 mm | |
| Colour | black | |
| contact surface | gold-plated | |
| Connection | screw connection | |
| clamping force range | max. 3 mm | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
