SMG-W-4,0X3,5X3,0-SN | MTC
SMD-Contact Pad Typ W
Order No.: 13L7061
MPN:
SMG-W-4,0X3,5X3,0-SN
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1654 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
496.23 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.1654 €
15000 pcs.
0.1499 €
30000 pcs.
0.1357 €
*incl. VAT plus shipping costs
Subject to prior sale

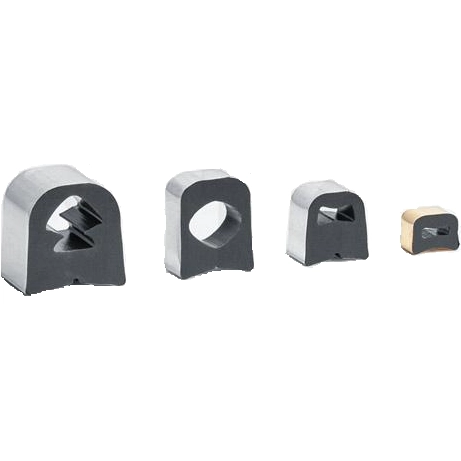

SMD Contact Pad, Type W
SMD contact pads are used exclusively on printed circuit boards and, due to their electrical and physical properties, are an excellent alternative to SMD contact springs. Type W SMD contact pads feature a silicone core encased in a conductive, solderable film. These components are supplied in tape-and-reel packaging as standard.
SMD contact pads are characterized by the following features:
- excellent electrical conductivity
- high heat resistance
- high abrasion resistance
- very good spring properties
- automated placement on the printed circuit board via SMT process
- high adhesion after the SMT process
- very good adhesion through soldering of the SMD contact pads
- In comparison, fabric gaskets are hardly temperature-resistant and cannot be soldered.

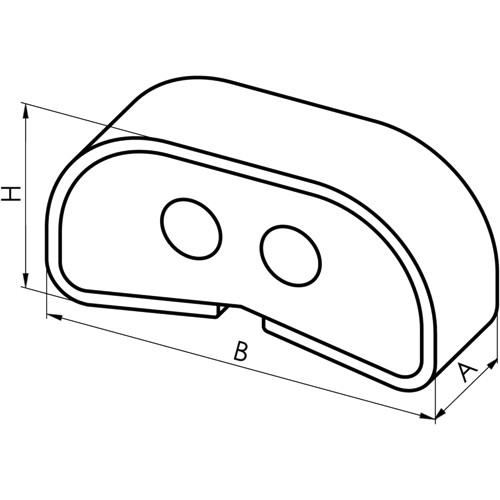

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | SMD | |
| Length | 3 mm | |
| Width | 4 mm | |
| Height | 3.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85480090 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
