MLC 32.6U | MPE-GARRY

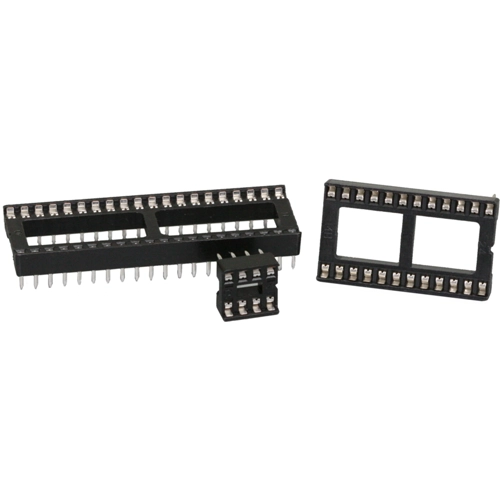

IC socket, 32 pole, pitch 2.54 mm (15.24 mm), tin-plated for DIL-IC, MLC 32.6U
IC sockets for standard requirements, type DIL.
Made of glass fiber-reinforced polyamide, tinned contacts; Current rating: 1.0 A. Operating voltage 10 mV to 60 V. Breakdown voltage: 1000 V. Operating temperatures: –40 to +105 °C. GW = grid width.
Type: 32-pole, GW 15.20 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | IC socket | |
| Suitable for | DIL-IC | |
| Pin number | 32 pole | |
| Grid | 2.54 mm | |
| Contact material | tin-plated | |
| Material | PA/glass fibers | |
| Rated voltage | 60 V | |
| Rated current | 1 A | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TW |
| Original Packaging | Bar with 15 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
