12 0037 000 88 | MPE-GARRY
IC plug-in adapter strip, 6 pole, pitch 2.54 mm, copper alloy, gold plated for SIL, 12 0037 000 88
Order No.: 15B648
MPN:
12 0037 000 88
037-1-006-D-X0F-RS0-0830
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3,498.60 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.5831 €
12000 pcs.
0.5236 €
24000 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale

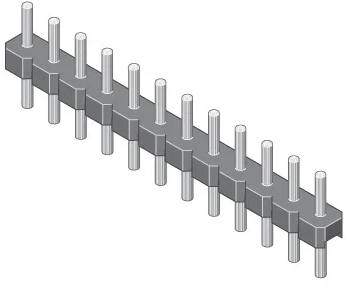

Single row male header, 12 0037 000 88, MPE-GARRY
Single row male header, insulation body height of 1.7 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | copper alloy, gold plated | |
| Grid | 2.54 mm | |
| Pin number | 6 pole | |
| Height | 2.5 mm | |
| min. operating temperature | -40 °C | |
| Rated current | 3 A | |
| max. operating temperature | 105 °C | |
| Version | IC plug-in adapter strip | |
| Material | thermoplastic | |
| Rated voltage | 150 V | |
| Width | 1.7 mm | |
| Suitable for | SIL | |
| Length | 15.24 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
