12 0019 000 21 | MPE-GARRY

Name: Carrier IC socket, 2 pole, pitch 2.54 mm, copper alloy, tin plated for SIL, 12 0019 000 21
Brand: MPE-GARRY
SKU: 15B643
Availability: InStock

Carrier IC socket, 2 pole, pitch 2.54 mm, copper alloy, tin plated for SIL, 12 0019 000 21

Order No.: 15B643

MPN:

12 0019 000 21

019-4-002-D-H3STF-XR0

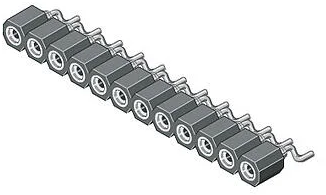

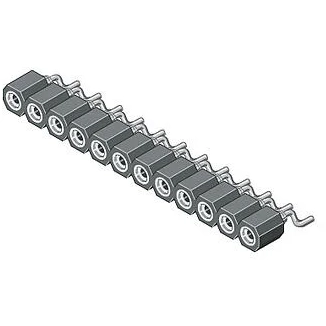

Image may differ

Key Specification:

Version carrier IC socket

Suitable for SIL

Pin number 2 pole

Grid 2.54 mm

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.6902 € *

Standard delivery time from the manufacturer is: On Request

Total Price:

6,902.00 € *

Price list

Quantity

Price per unit*

10000 pcs.

0.6902 €

30000 pcs.

0.5831 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Precision base strip, 12 0019 000 21, MPE-GARRY

Single row socket strip (SIL), horizontal, Copper alloy, 2,54 mm.

Technical specifications

Filter	Property	Value
	Contact material	copper alloy, tin plated
	min. operating temperature	-55 °C
	Pin number	2 pole
	Grid	2.54 mm
	Width	2.95 mm
	max. operating temperature	125 °C
	Rated voltage	150 V
	Rated current	3 A
	Suitable for	SIL
	Height	2.54 mm
	Material	thermoplastic
	Version	carrier IC socket
