023-2-008-3-B1STG-XT0 | MPE-GARRY
IC socket partially assembled, 14 pole, pitch 2.54 mm (7.62 mm), brass/copper beryllium for DIL-IC, 023-2-008-3-B1STG-XT0
Unit Price (€ / pc.)
1.7493 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.25 € *
Price list
Quantity
Price per unit*
3 pcs.
1.7493 €
15 pcs.
1.5589 €
75 pcs.
1.4042 €
400 pcs.
1.2733 €
800 pcs.
1.1781 €
*incl. VAT plus shipping costs
Subject to prior sale
IC sockets, partially assembled, type MPE-GARRY MP-RELAIS.
Open version, for relays; Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: - 55 to +125 °C. Assembly: pin 1, 2, 6, 7, 8, 9, 13, 14.
Technical attributes (type, number of poles, rated current): 023-2-008-3-B1STG-XT0, 14-pole, A

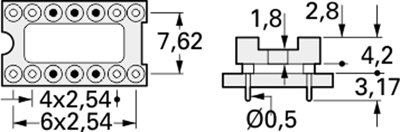

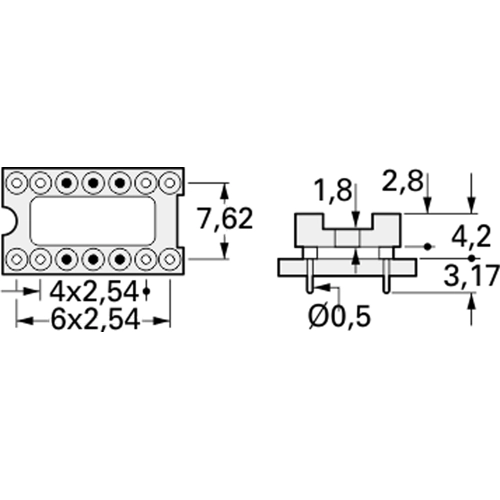

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated current | 1 A | |
| Pin number | 14 pole | |
| Length | 17.7 mm | |
| Contact material | brass/copper beryllium | |
| Suitable for | DIL-IC | |
| Width | 10.1 mm | |
| Height | 2.8 mm | |
| Version | IC socket partially assembled | |
| Material | thermoplastic | |
| Rated voltage | 150 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
| Original Packaging | Bar with 29 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
