015-1-014-3-H5STF-LT0 | MPE-GARRY

IC socket, 14 pole, pitch 2.54 mm (7.62 mm), copper alloy, gold plated for DIL-IC

Order No.: 14B2506
EAN: 4099879023179
MPN:
015-1-014-3-H5STF-LT0
Series: MP-SMD
MPE-GARRY

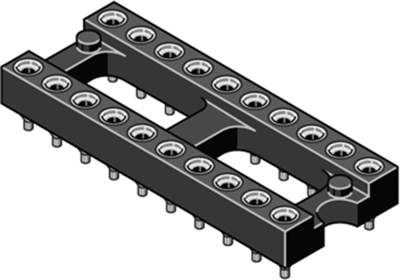

default L

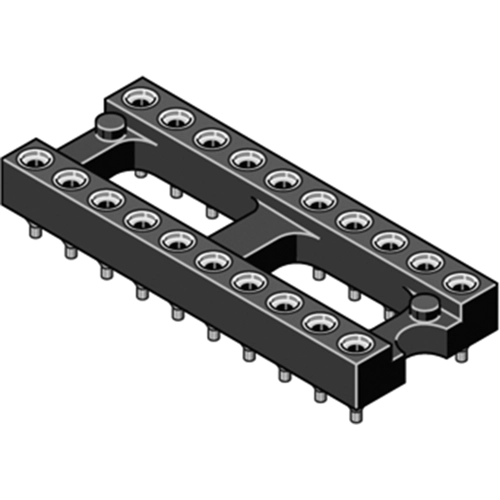

front L
Image may differ
Unit Price (€ / pc.)
1.19 € *
Available: 1,437 pcs.
Leadtime: On Request **
Total Price:
1.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.19 €

SMD IC sockets, type MPE-GARRY MP-SMD.

Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper, gold-plated. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.

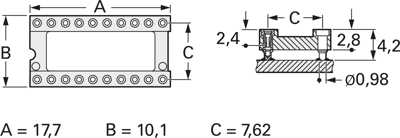

Technical attributes (number of poles, dimensions): 015-1-014-3-H5STF-LT0, 14-pole, A 17.70, B 10.10, C 7.62 mm

Technical specifications
Version IC socket
Width 10.1 mm
Suitable for DIL-IC
Height 2.8 mm
Contact material copper alloy, gold plated
Length 17.7 mm
Material thermoplastic
max. operating temperature 125 °C
min. operating temperature -55 °C
Rated voltage 150 V
Rated current 1 A
Pin number 14 pole
Grid 2.54 mm
Logistics
Country of origin CH
Customs tariff number 85366990
Original Packaging Bar with 29 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
