012-2-056-6-A5STF-XS0 | MPE-GARRY

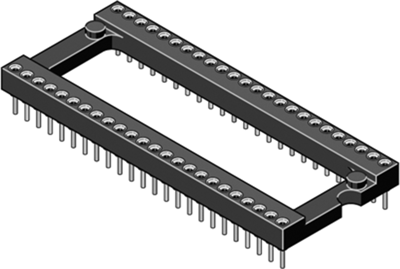

IC socket, 56 pole, pitch 1.778 mm (15.24 mm), brass/copper beryllium for DIL-IC, 012-2-056-6-A5STF-XS0
Unit Price (€ / pc.)
7.0091 € *
Available: 116 pcs.
Total Price:
7.01 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0091 €
10 pcs.
6.1642 €
100 pcs.
5.4145 €
250 pcs.
5.2003 €
1000 pcs.
4.8671 €
*incl. VAT plus shipping costs
Subject to prior sale
IC sockets, 1.778 mm grid, type MPE-GARRY MP-SHRINK.
Open version; Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper, tinned sleeve. Spring: gold-plated. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.

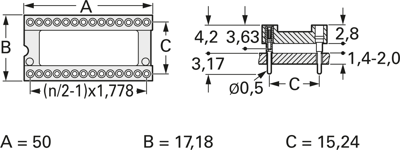

Technical attributes (number of poles, dimensions): 012-2-056-6-A5STF-XS0, 56-pole, A 50.00, B 17.18, C 15.24
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 17.18 mm | |
| Suitable for | DIL-IC | |
| Pin number | 56 pole | |
| Length | 50 mm | |
| Contact material | brass/copper beryllium | |
| max. operating temperature | 125 °C | |
| Rated voltage | 150 V | |
| min. operating temperature | -55 °C | |
| Material | thermoplastic | |
| Version | IC socket | |
| Height | 2.8 mm | |
| Rated current | 1 A | |
| Grid | 1.778 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
| Original Packaging | Bar with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
