009-1-032-D-X0STF-XS0 | MPE-GARRY

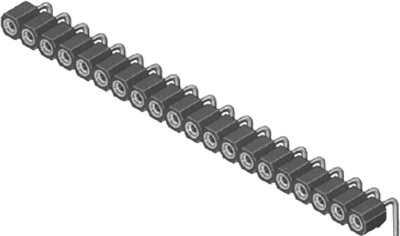

IC-socket strip, 32 pole, pitch 2.54 mm, brass/copper beryllium for DIL-IC, 009-1-032-D-X0STF-XS0
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.8556 € *
Available: 130 pcs.
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
25 pcs.
3.7604 €
*incl. VAT plus shipping costs
Subject to prior sale
IC spring socket strips, angled, type MPE-GARRY MS.
2; .54 mm grid Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Sleeve: tinned. Spring: gold-plated. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.
Technical attributes (number of poles, version): 009-1-032-D-X0STF-XS0, 32-pole, single row
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | IC contact spring strip | |
| Suitable for | DIL-IC | |
| Pin number | 32 pole | |
| Grid | 2.54 mm | |
| Contact material | brass/copper beryllium | |
| Material | thermoplastic | |
| Rated voltage | 150 V | |
| Rated current | 1 A | |
| Width | 5.6 mm | |
| Height | 1.27 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
