008-1-032-D-D2STF-XS0 | MPE-GARRY

IC-socket strip, 32 pole, pitch 2.54 mm, brass/copper beryllium for DIL-IC, 008-1-032-D-D2STF-XS0

Order No.: 15B631
EAN: 4099879023780
MPN:
008-1-032-D-D2STF-XS0
Series: MS-ULP

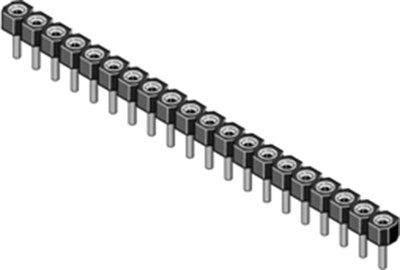

008-1-032-D-D2STF-XS0 MPE-GARRY Semiconductor Sockets, Holders Image 1

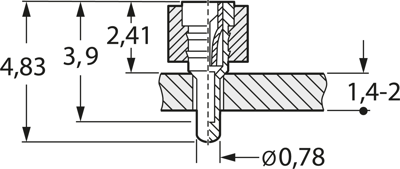

008-1-032-D-D2STF-XS0 MPE-GARRY Semiconductor Sockets, Holders Image 2
Image may differ
Unit Price (€ / pc.)
4.4625 € *
Available: 656 pcs.
Leadtime: 19 Weeks **
Total Price:
4.46 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4625 €
10 pcs.
3.9270 €
100 pcs.
3.4272 €
250 pcs.
3.3082 €
1000 pcs.
3.0940 €
*incl. VAT plus shipping costs
**Subject to prior sale

IC spring socket strips with solder pins, type MPE-GARRY MS-ULP.

Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper, gold-plated spring contact, tinned solder pins. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C. Dimensions: 2.54 mm grid.

Type: 008-1-032-D-D2STF-XS0, 32-pole

Technical specifications
Rated current 1 A
Grid 2.54 mm
Width 2.54 mm
Height 2.41 mm
Length 4.83 mm
Pin number 32 pole
Version IC contact spring strip
min. operating temperature -55 °C
Material thermoplastic
Suitable for DIL-IC
Contact material brass/copper beryllium
max. operating temperature 125 °C
Rated voltage 150 V
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
