006-1-050-D-G3SFF-XS0 | MPE-GARRY
IC-socket strip, 50 pole, pitch 2.54 mm, brass/copper beryllium for DIL-IC, 006-1-050-D-G3SFF-XS0
Unit Price (€ / pc.)
20.3371 € *
Available: 258 pcs.
Total Price:
20.34 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3371 €
5 pcs.
19.2780 €
10 pcs.
18.3260 €
20 pcs.
17.4811 €
100 pcs.
16.9456 €
*incl. VAT plus shipping costs
Subject to prior sale

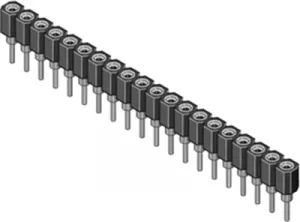

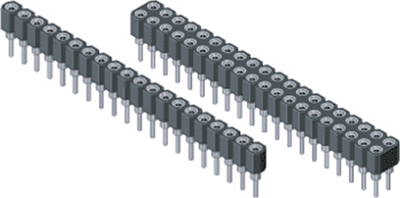

IC spring socket strips with wire-wrap posts, type MPE-GARRY MS/MSD.
Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper, gold-plated spring. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.
Technical attributes (number of poles, finish of wire-wrap posts): 006-1-050-D-G3SFF-XS0, 50-pole, gold-plated

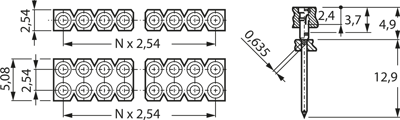

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Material | thermoplastic | |
| Rated voltage | 150 V | |
| max. operating temperature | 125 °C | |
| Contact material | brass/copper beryllium | |
| Length | 7.37 mm | |
| Height | 2.4 mm | |
| Width | 2.54 mm | |
| min. operating temperature | -55 °C | |
| Pin number | 50 pole | |
| Suitable for | DIL-IC | |
| Version | IC contact spring strip | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
