006-1-032-D-K1STH-XS0 | MPE-GARRY
IC-socket strip, 32 pole, pitch 2.54 mm, brass/copper beryllium for DIL-IC, 006-1-032-D-K1STH-XS0
Unit Price (€ / pc.)
6.1642 € *
Available: 49 pcs.
Total Price:
6.16 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1642 €
5 pcs.
5.6049 €
25 pcs.
5.3193 €
100 pcs.
5.0456 €
200 pcs.
4.8909 €
*incl. VAT plus shipping costs
Subject to prior sale

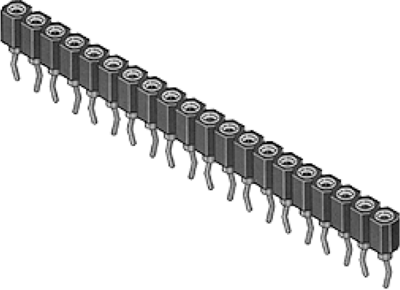

IC spring socket strips with slightly angled solder pins, type MPE-GARRY MS.
For holes from 0.78 to 0.85 mm, 2.54 mm grid, splittable; Insulating body: thermoplastic to UL 94 V-0 (self-extinguishing). Sleeve: tinned brass. Spring contact: beryllium copper, 0.75 µ gold-plating. Rated current: 1.0 A. Operating temperatures: –55 to 125 °C.
Type: 006-1-032-D-K1STH-XS0, 32-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 2.54 mm | |
| Rated voltage | 150 V | |
| Suitable for | DIL-IC | |
| Material | thermoplastic | |
| Pin number | 32 pole | |
| Contact material | brass/copper beryllium | |
| Grid | 2.54 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Version | IC contact spring strip | |
| Height | 2.4 mm | |
| Length | 10.6 mm | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
