001-2-040-6-B1STF-XT0 | MPE-GARRY

IC socket, 40 pole, pitch 2.54 mm (15.24 mm), copper alloy, tin plated for DIL-IC, 001-2-040-6-B1STF-XT0

Order No.: 14B1938
EAN: 4099879023155
MPN:
001-2-040-6-B1STF-XT0
Series: 001 xxx B1STF
001-2-040-6-B1STF-XT0 MPE-GARRY Semiconductor Sockets, Holders Image 1
001-2-040-6-B1STF-XT0 MPE-GARRY Semiconductor Sockets, Holders Image 2
Image may differ
Unit Price (€ / pc.)
3.4153 € *
Available: 825 pcs.
Leadtime: 3 Weeks **
Total Price:
3.42 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4153 €
10 pcs.
3.0107 €
100 pcs.
2.6418 €
250 pcs.
2.5347 €
1000 pcs.
2.3681 €
*incl. VAT plus shipping costs
**Subject to prior sale

Flat IC precision sockets, type MPE-GARRY Serie 001.

Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.

With selective gold-plated female contacts and tinned solder pins, type MP STG B.

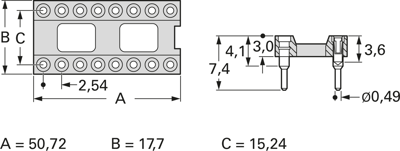

Technical attributes (number of poles, dimensions): 001-2-040-6-B1STF-XT0, 40-pole, A 50.72, B 17.70, C 15.24 mm

Technical specifications
Rated current 3 A
Grid 2.54 mm
Width 17.7 mm
Height 3 mm
Length 50.8 mm
Pin number 40 pole
Version IC socket
min. operating temperature -55 °C
Material thermoplastic
Suitable for DIL-IC
Contact material copper alloy, tin plated
max. operating temperature 125 °C
Rated voltage 150 V
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Bar with 10 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
