001-2-028-6-A1SFH-XT0 | MPE-GARRY

IC socket, 28 pole, pitch 2.54 mm (15.24 mm), copper alloy, gold plated for DIL-IC, 001-2-028-6-A1SFH-XT0

Order No.: 14B148
EAN: 4099879022974
MPN:
001-2-028-6-A1SFH-XT0
Series: 001 xxx A1SFH

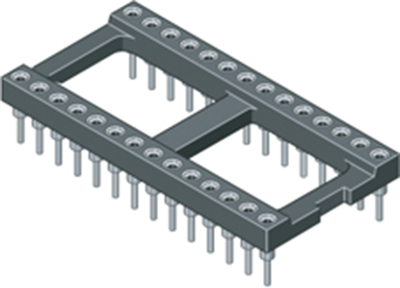

001-2-028-6-A1SFH-XT0 MPE-GARRY Semiconductor Sockets, Holders Image 1
001-2-028-6-A1SFH-XT0 MPE-GARRY Semiconductor Sockets, Holders Image 2
Image may differ
Unit Price (€ / pc.)
6.8068 € *
Available: 191 pcs.
Total Price:
6.81 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8068 €
10 pcs.
6.2237 €
25 pcs.
5.9262 €
50 pcs.
5.6406 €
100 pcs.
5.4621 €
*incl. VAT plus shipping costs
Subject to prior sale

Flat IC precision sockets, type MPE-GARRY Serie 001.

Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.

With gold-plated solder pins, type MP SGG A.

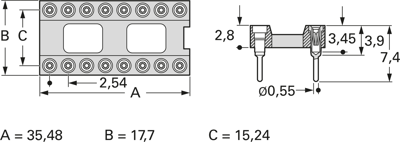

Technical attributes (number of poles, dimensions): 001-2-028-6-A1SFH-XT0, 28-pole, A 35.48, B 17.70, C 15.24 mm

Technical specifications
min. operating temperature -55 °C
Rated voltage 150 V
Suitable for DIL-IC
Length 35.48 mm
Pin number 28 pole
Grid 2.54 mm
max. operating temperature 125 °C
Version IC socket
Material thermoplastic
Rated current 3 A
Width 17.7 mm
Contact material copper alloy, gold plated
Height 2.8 mm
Logistics
Country of origin DE
Original Packaging Bar with 14 pieces
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
