MS-402 RED | Miyama Electric

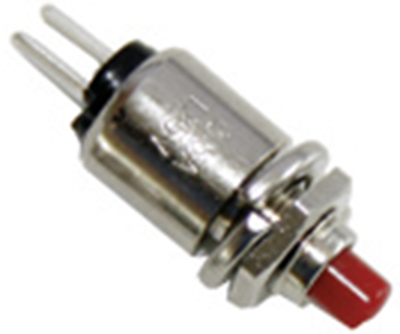

Pushbutton, 2 pole, red, unlit , 0.5 A/125 V, mounting Ø 5.2 mm, MS-402 RED
Unit Price (€ / pc.)
2.9036 € *
Available: 338 pcs.
Total Price:
2.90 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9036 €
25 pcs.
2.4752 €
100 pcs.
2.2848 €
250 pcs.
2.1777 €
1000 pcs.
1.9873 €
*incl. VAT plus shipping costs
Subject to prior sale
Pushbutton switches, type MS 402.

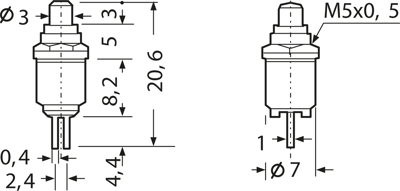

With one NO contact. Bushing mount M 5 x 0.5; Breaking capacity: 0.5 A/125 VAC. Panel mount diameter: 7.0 mm.
Type: red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Breaking capacity | 0.5 A/125 V | |
| Actuator colour | red | |
| Pin number | 2 pole | |
| Printed | No | |
| Design | round | |
| illuminated | No | |
| Latching switching function | groping | |
| Installation diameter | 5.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
