MS-402 BLACK | Miyama Electric

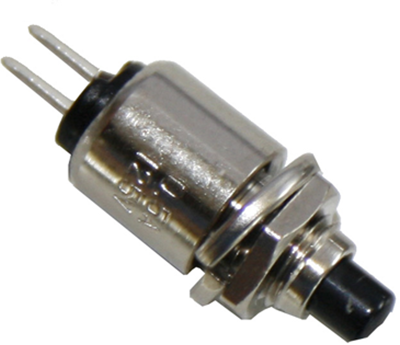

Pushbutton, 2 pole, black, unlit , 0.5 A/125 V, mounting Ø 5.2 mm, MS-402 BLACK
Order No.: 12G2881
EAN: 4099889190236
MPN:
MS-402 BLACK
Unit Price (€ / pc.)
2.9036 € *
Next delivery: 200 pcs. on 2025-08-15
Total Price:
2.90 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9036 €
10 pcs.
2.5585 €
100 pcs.
2.2491 €
250 pcs.
2.1658 €
1000 pcs.
2.0230 €
*incl. VAT plus shipping costs
Subject to prior sale
Pushbutton switches, type MS 402.
With one NO contact. Bushing mount M 5 x 0.5; Breaking capacity: 0.5 A/125 VAC. Panel mount diameter: 7.0 mm.
Type: black
Operating Temperature: -10°C bis 55°C
Storage Temperature: -20°C bis 65°C
Humidity: 40°C +/- 2°C, 90-95% humidity, 48 hours.
Switching Cycles: w/o Load 30,000 Zyklen.
UL-File-Number (Material): k.A.
Switching voltage / current: 0.5A 125VAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 5.2 mm | |
| illuminated | No | |
| Actuator colour | black | |
| Printed | No | |
| Pin number | 2 pole | |
| Breaking capacity | 0.5 A/125 V | |
| Latching switching function | groping | |
| Connection | solder connection | |
| Design | round |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
