MJ-032 BLACK | Miyama Electric

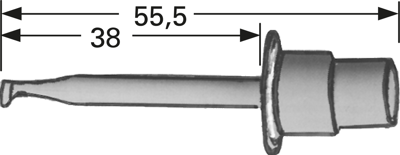

Ultra-fine test probe, black, max. 2 mm, L 55.5 mm, solder connection, MJ-032 BLACK
Order No.: 35F225
EAN: 4099889683066
MPN:
MJ-032 BLACK
Unit Price (€ / pc.)
2.0349 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
2.03 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0349 €
25 pcs.
1.7136 €
100 pcs.
1.5827 €
250 pcs.
1.5113 €
1000 pcs.
1.3804 €
*incl. VAT plus shipping costs
Subject to prior sale
Test probe, MJ-032 BLACK, Miyama Electric
Ultra-fine test probe with contact hooks for reliable clamping to components in high density surroundings, for example ICs, etc. Test lead is connected by crimping or soldering after removing the clip button.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 2 mm | |
| Length | 55.5 mm | |
| Rated current | 1 A | |
| Rated Voltage | 30 VAC/60 VDC | |
| Colour | black | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
