MIKROE-5100 | MikroElektronika
Motor control board, MIKROE-5100
Unit Price (€ / pc.)
44.387 € *
Standard delivery time from the manufacturer is: 4 Weeks
Motor control board, MIKROE-5100, MikroElektronika

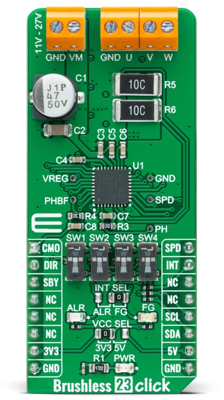

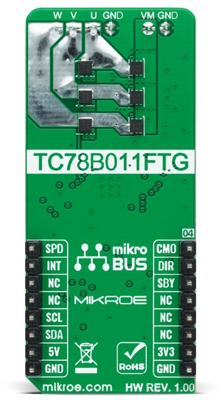

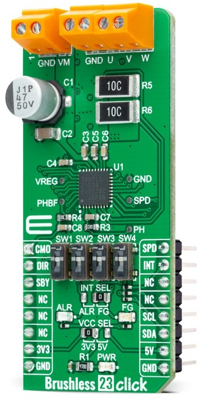

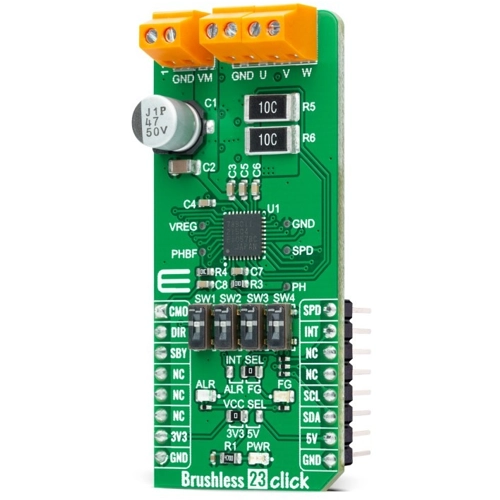

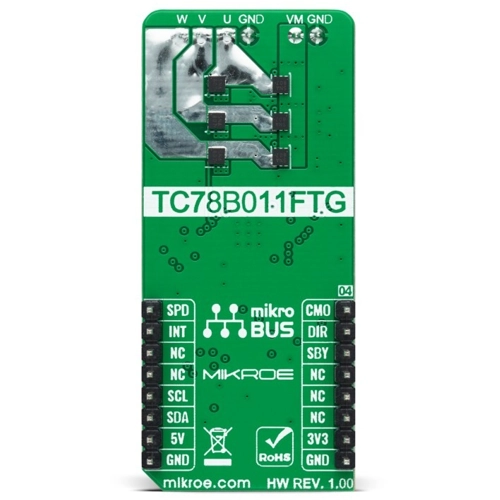

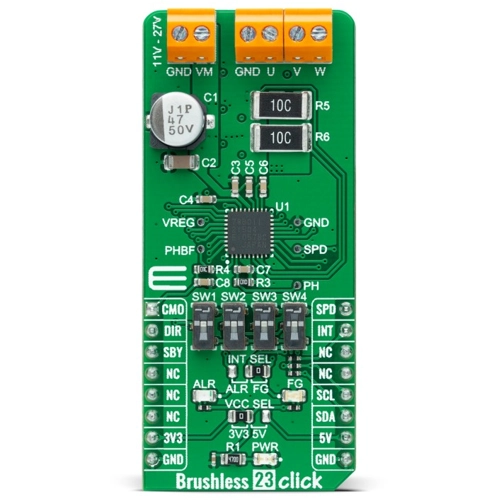

Brushless 23 Click is a compact add-on board suitable for controlling BLDC motors with any microcontroller. This board features the TC78B011FTG, a three-phase sine-wave PWM pre-driver realized with six external MOSFETs to drive sensorless brushless motors. It has a wide operating voltage range of 11V to 27V with an output current capacity of 5A and several built-in error detection circuits. This Click board provides optimum operational efficiency in applications such as high-velocity server fans, blowers, and pumps.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Function | motor controller | |
| Connection | mikroBUS | |
| Product type | development board | |
| IC controller/driver | TC78B011FTG | |
| MPU interface | GPIO, I²C, PWM | |
| Version | Brushless 23 Click |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RS |
| Customs tariff number | 84733020 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
