Audio Codec Board - PROTO MIKROE-506
Unit Price (€ / pc.)
39.4723 € *
Available: 5 pcs.
Total Price:
39.47 € *
Price list
Quantity
Price per unit*
1 pcs.
39.4723 €
5 pcs.
37.1042 €
15 pcs.
35.7000 €
50 pcs.
34.0935 €
150 pcs.
32.6655 €
*incl. VAT plus shipping costs
Subject to prior sale
Audio Codec Board - PROTO, MIKROE-506, MikroElektronika

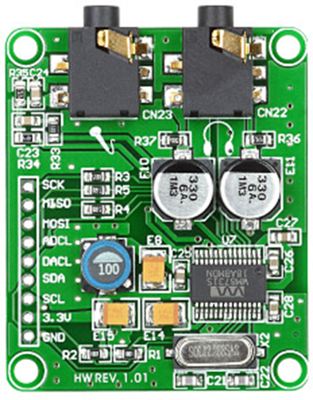

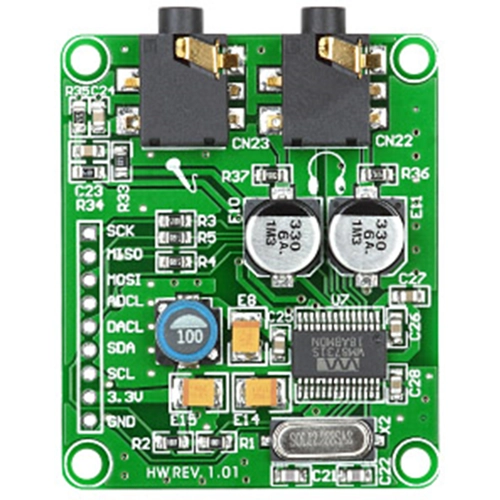

The Audio Codec Board - PROTO is a development tool for the WM8731 Audio Codec, ideal for use in embedded applications which require audio playback. The on-board Audio Codec WM8731 provides stereo line and mono microphone level audio inputs. This module also uses stereo 24-bit multi-bit sigma delta ADCs and DACs with oversampling digital interpolation and decimation filters. Stereo audio outputs are buffered for driving headphones from a programmable volume control. Line level outputs are also provided along with anti-thump mute and power up/down circuitry. The device is controlled via 2 wire (I2C) or 3 wire (SPI) serial interface.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| MPU interface | I²C | |
| Version | audio codec board - PROTO | |
| Product type | development board | |
| Function | stereo CODEC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
