H-Bridge 3 Click MIKROE-3613
NCNR (non cancelable / non returnable)
Motion Motor Control Click Board, MIKROE-3613, MikroElektronika

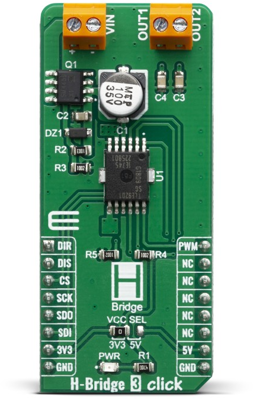

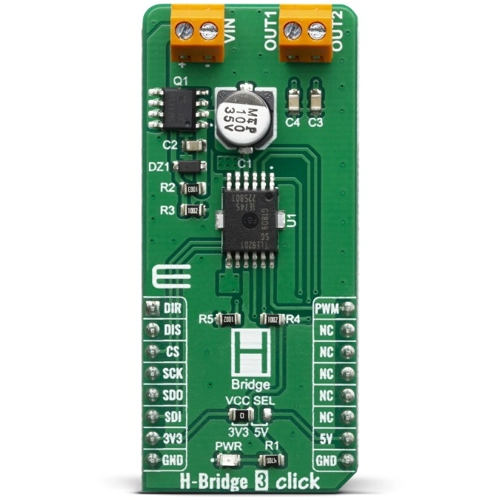

H-Bridge 3 Click is designed for the control of small DC motors and inductive loads, it features TLE9201SG a general purpose 6A H-Bridge perfectly suited for industrial and automotive applications. This IC meets the harsh automotive environmental conditions and it is qualified in accordance with the AEC-Q100 standard, also has set of features such as the short circuit and over-temperature protection, under-voltage protection, detailed SPI diagnosis or simple error flag and fully 3.3/5.5V compatible logic inputs.
H-bridge 3 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
| Filter | Property | Value |
|---|---|---|
| Product type | development board | |
| Version | H-Bridge 3 Click | |
| Function | motor controller | |
| MPU interface | GPIO, SPI | |
| IC controller/driver | TLE9201SG |
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
