MIKROE-3569 | MikroElektronika
Buck 10 Click MIKROE-3569
NCNR (non cancelable / non returnable)
Power Module, MIKROE-3569, MikroElektronika

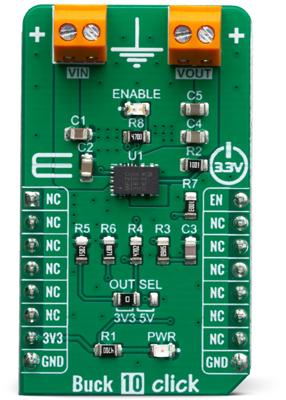

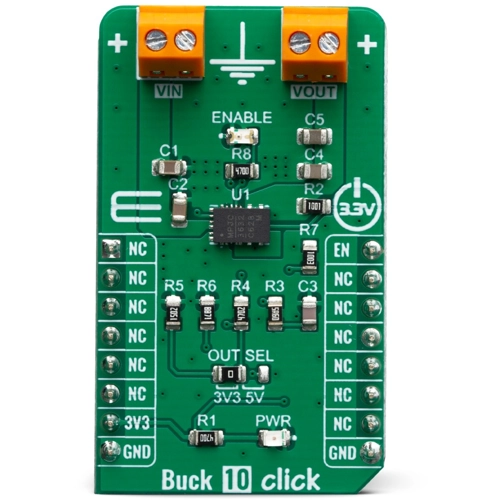

Buck 10 Click is a high-efficiency step-down converter which provides a highly regulated output voltage derived from the connected power source, rated from 4V to 18V. The regulated output voltage can be selected between two values: 3.3V and 5V. These are voltage values that are most commonly used in many embedded designs. This click is based around an integrated DC-DC converter, labeled as MPM3632C. Due to its high efficiency, MPM3632C allows the Click board™ to easily deliver up to 3A of current. The MPM3632C is very reliable, offering over-current and over-voltage protection, as well as a thermal shutdown.
Buck 10 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
| Filter | Property | Value |
|---|---|---|
| Product type | development board | |
| Version | Buck 10 Click | |
| Function | step-down converter | |
| MPU interface | GPIO | |
| IC controller/driver | MPM3632C |
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
