DC MOTOR 7 CLICK

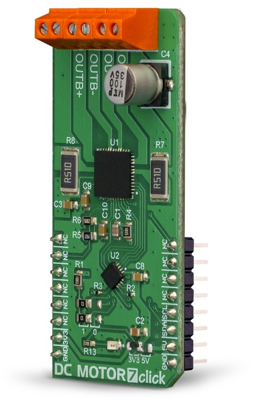

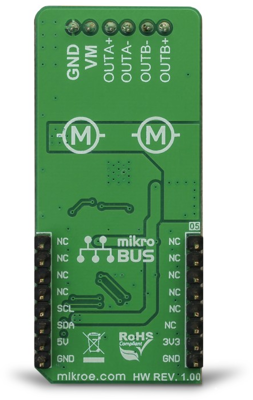

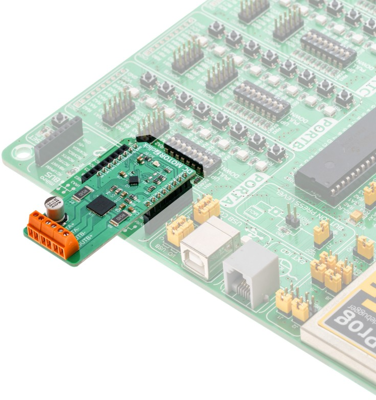

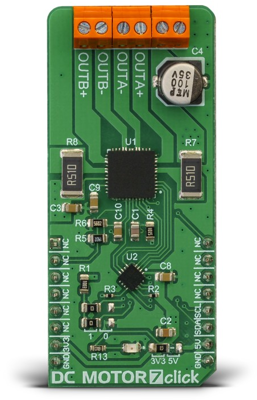

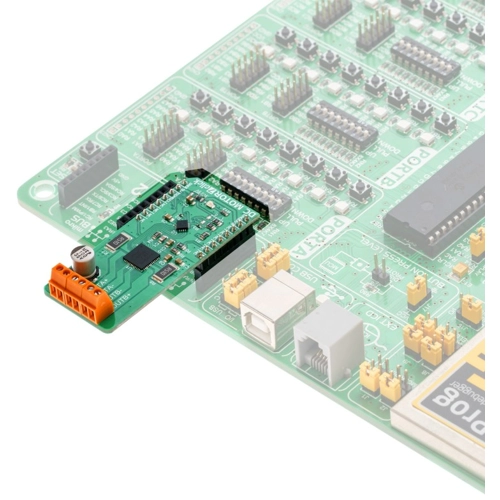

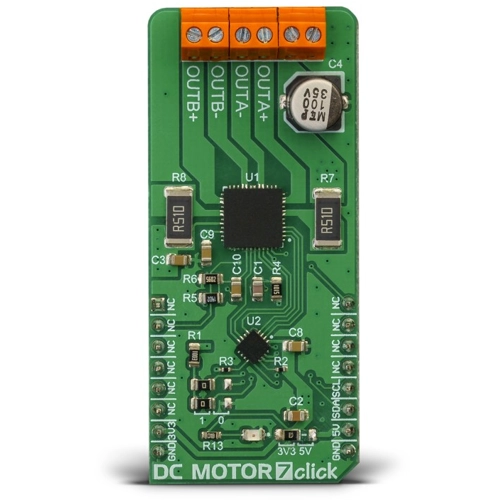

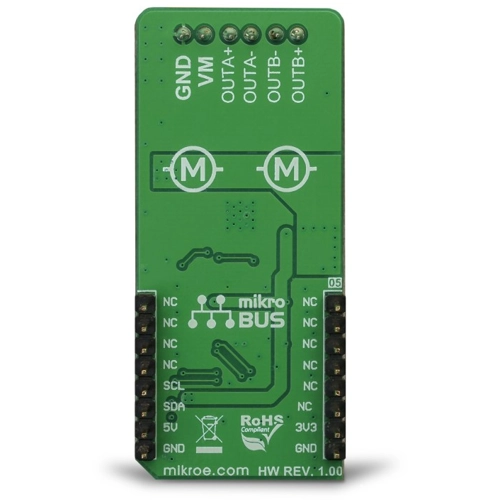

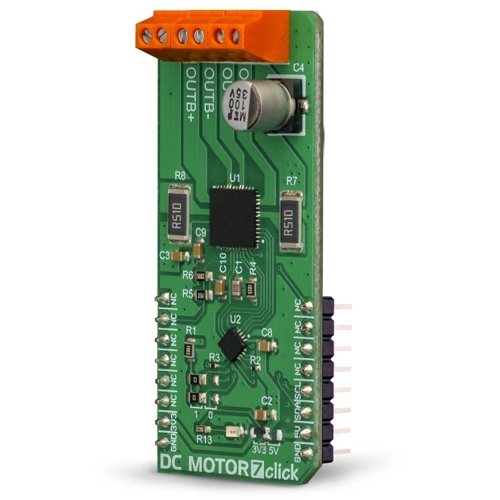

DC MOTOR 7 click is a dual brushed DC motor driving Click board, featuring the advanced PWM chopper-type integrated DC motor driver, labeled as TB67H400AFTG. This IC can drive two brushed DC motors independently, using a wide range of supply voltages, while delivering reasonably high current to the connected DC motors. This is possible due to the low resistance of the integrated H-Bridges. In addition to being able to drive two independent DC motors, it can be used in a so-called large mode to drive a single motor, utilizing both bridges in parallel. This effectively doubles the amount of current it can deliver to the DC motor. The Click board is supported by the mikroSDK compliant library, which includes functions that simplify software development. The Click board comes as a fully tested product, ready to be used on a system equipped with mikroBUS.
