MIKROE-2396 | MikroElektronika
R Meter click MIKROE-2396
Unit Price (€ / pc.)
47.3501 € *
Standard delivery time from the manufacturer is: 4 Weeks
R Meter Click, MIKROE-2396, MikroElektronika

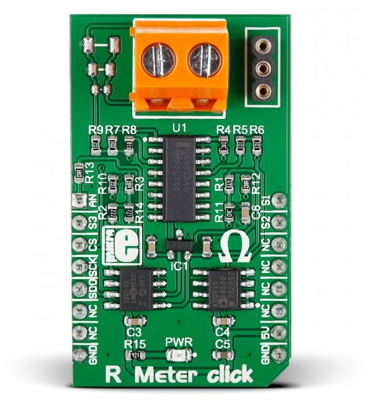

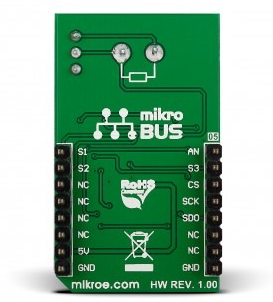

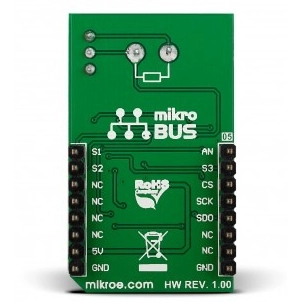

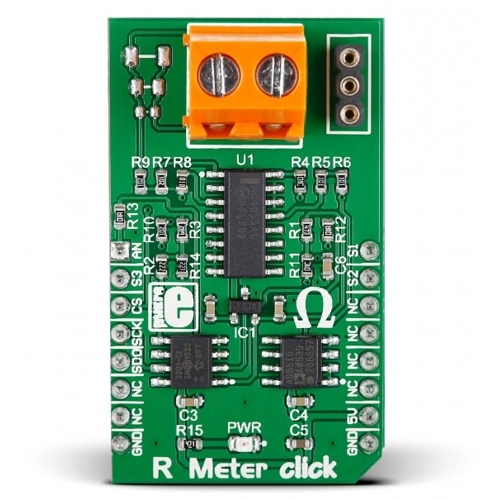

The R Meter Click is a compact board with circuitry for measuring the value of resistors. It can measure a wide range of resistors from 0 up to 1 Mega Ohm. It has three plates for SMD resistors 0603, 0805, and 1206, as well as a header for thru-hole resistors. The onboard screw terminal can be used with multimeter probes. This Click board makes the perfect solution for the development of applications based on resistance measurements, tools, and as a fully tested product, ready to be used on a system equipped with the mikroBUS socket.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | R meter click | |
| Function | resistance measurement | |
| IC controller/driver | AD8616 | |
| Product type | development board | |
| MPU interface | GPIO, Analog, SPI |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
