DAC2 Click MIKROE-1918
Unit Price (€ / pc.)
34.0221 € *
Standard delivery time from the manufacturer is: 4 Weeks
DAC 2 click, MIKROE-1918, MikroElektronika

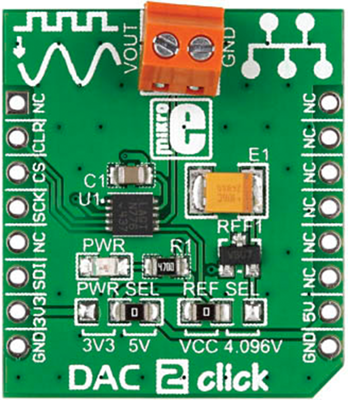

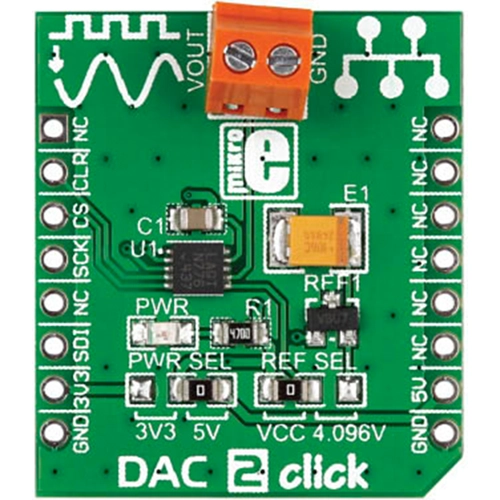

DAC2 click carries LTC2601, a 16-bit digital-to-analog converter from Analog Devices, along with voltage output screw terminals. The chip has high rail-to-rail output drives (±15mA, Min) and double-buffered data latches. The click board communicates with the target MCU through the mikroBUS SPI interface with clock rates up to 50MHz. Additionally, the CLR pin, in place of default mikroBUS RST pin, clears all the registers. The board uses either a 3.3V or 5V power supply. You can also set the reference voltage either to VCC or 4.096V.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DAC click | |
| Function | digital-to-analog converter | |
| IC controller/driver | LTC2601CDD | |
| Product type | development board | |
| MPU interface | SPI, GPIO |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
