MIKROE-1851 | MikroElektronika

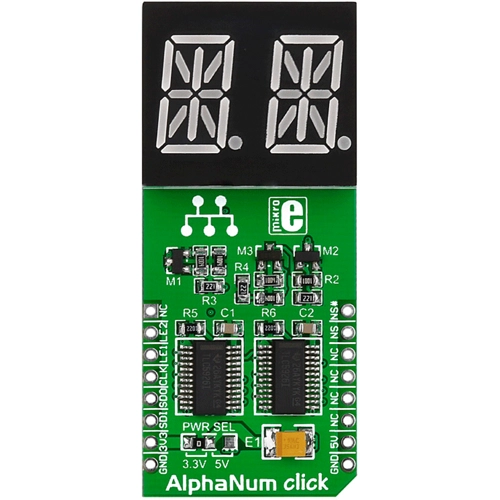

AlphaNum G click MIKROE-1851
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
16.3030 € *
Standard delivery time from the manufacturer is: 4 Weeks
Interface: SPI,Power Supply: 3.3V or 5V,On-board modules: TLC5926, dual character green LED 14-segment display,Applications: 14-segment displays, also known as starburst displays, are capable of legibly rendering the ISO Latin alphabet,Key Features: Two additional segments for commas. Two TLC5926 16-bit shift registers,Key Benefits: Suitable for displaying both letters and digits. Clear and legible LED display,Compatibility: mikroBUS,Product Type: LED Segment,Click board size: L (57.15 x 25.4 mm)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | extension board | |
| Version | AlphaNum G click |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
