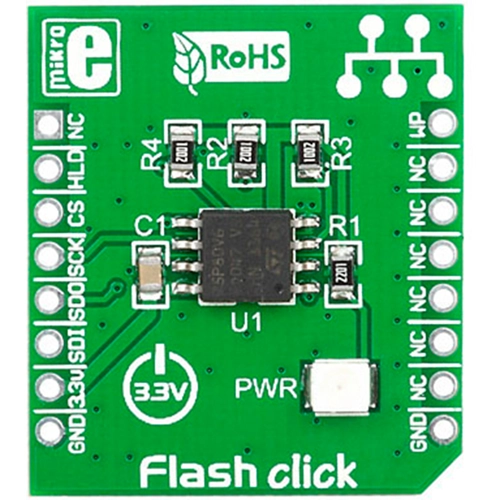

Flash Click MIKROE-1199
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
10.8290 € *
Standard delivery time from the manufacturer is: 4 Weeks
Interface: SPI,Power Supply: 3.3V,On-board modules: EN25Q80B - 8Mb serial Flash memory module,Applications: Board is ideal as a mass storage option in multimedia devices, drives, optical and printing devices,Key Features: Memory is devided into 16 sectors, each containing 256 pages. Each page is 256 bytes wide.,Key Benefits: High performance (104MHz clock rate). Low power consumption (10 mA typical active current; 1 μA typical power down current),Compatibility: mikroBUS,Product Type: Flash,Click board size: S (28.6 x 25.4 mm)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | extension board | |
| Version | Flash Click |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RS |
| Customs tariff number | 84733020 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
