RFid click MIKROE-1434
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
49.2422 € *
Standard delivery time from the manufacturer is: 4 Weeks
RFid click, MIKROE-1434, MikroElektronika

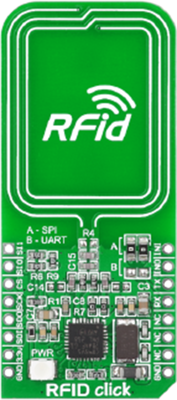

RFid click features CR95HF 13.56 MHz contactless transceiver as well as trace antenna. The click is designed to run on a 3.3V power supply only. It communicates with the target MCU via mikroBUS™ UART (TX, RX), SPI (MISO, MOSI, SCK, CS) INT, RST, PWM and AN lines.
The click functions as an integrated transceiver for contactless applications. The board contains a dedicated internal frame controller and analog front end (AFE) for RF communications. It supports ISO/IEC 14443 type A and B, ISO/IEC 15693 and ISO/IEC 18092 protocols (tags) as well as the detection, reading and writing of NFC forum type 1, 2, 3 and 4 tags.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| nominal frequency | 13.56 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
