Extension board BT Audio 4 Click, MIKROE-6685

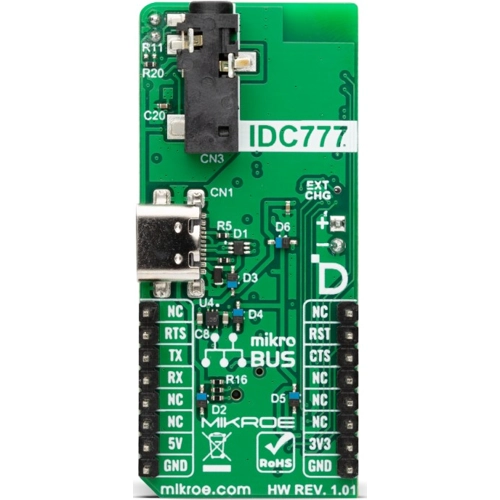

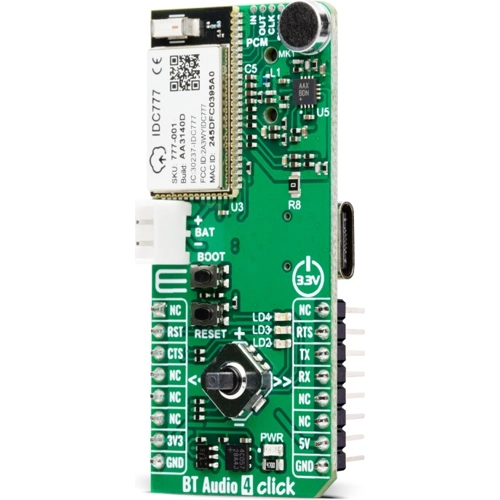

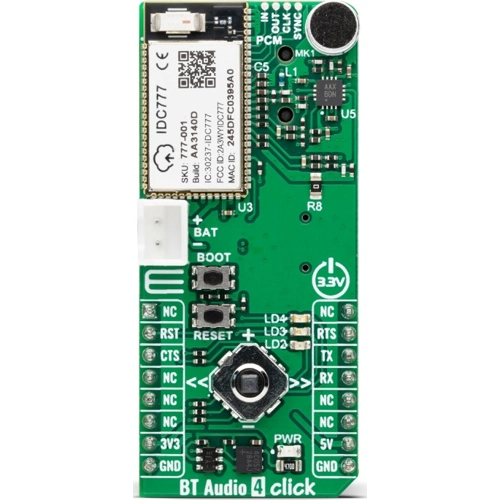

BT Audio 4 Click is a compact add-on board designed to provide high-quality wireless audio streaming and data communication over Bluetooth in both Classic and LE Audio modes. This board is based on the IDC777-1, a fully integrated Bluetooth 5.4 module from IOT747 supporting LE Audio Unicast and Auracast, controlled via UART. It supports multiple Bluetooth profiles such as HFP, A2DP (Sink/Source), AVRCP, SPP, and BLE, and includes both analog and digital audio interfaces for full headset functionality. It features a PCM interface for digital audio connectivity, a MAX9722A stereo amplifier with a CTIA-compliant 3.5mm jack for headphone output, and an onboard electret microphone for voice input. This Click board™ is ideal for audio-visual systems, teleconferencing equipment, portable audio devices, and industrial or automotive Bluetooth audio applications.

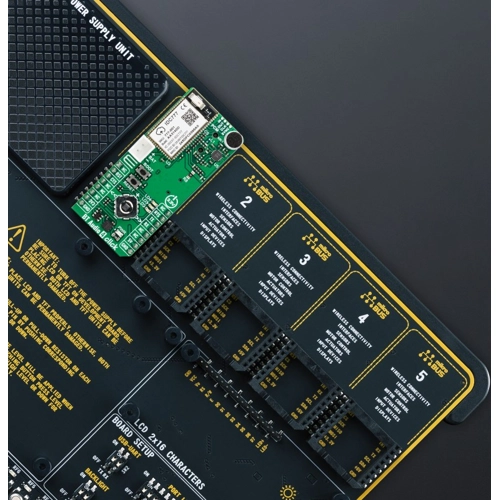

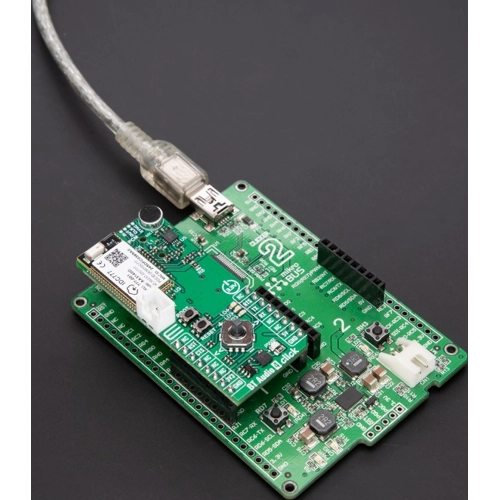

BT Audio 4 Click Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization. What sets this Click board™ apart is the groundbreaking ClickID feature, enabling your host system to automatically detect and identify this add-on board.
