MIKROE-2524 | MikroElektronika

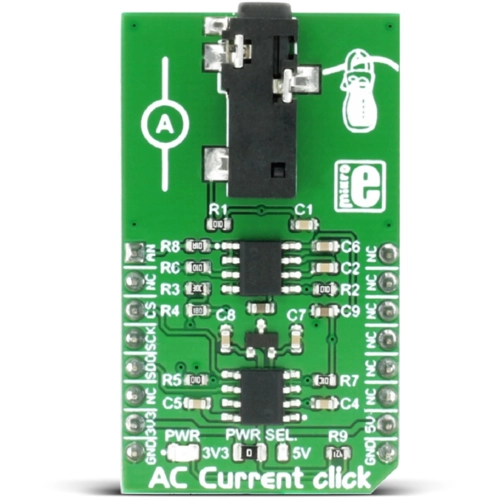

AC Current sensor MIKROE-2524
Order No.: 74S7595
EAN: 8606015079981
MPN:
MIKROE-2524
AC Current sensor
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
20.825 € *
Standard delivery time from the manufacturer is: 4 Weeks
Applications: Suitable for the current measuring, Monitoring and protection of AC motor, Lighting equipment, Air compressor, Key features: Open Size: 13mm x 13mm, Leading Wire in Length: 1m, Dielectric Strength (between shell and output): 1000V AC/1min 5mA, Work Temperature: -25°C ~ ﹢70°C, Resistance Grade: Grade B, Build-in sampling resistance（RL): 186Ω, Non-linearity: ±3%, Output Mode: 0~1V, Input Current: 0~30A AC, Fire resistance property: in accordance with UL94-VO
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | developer board |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RS |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
