MIKROE-1189 | MikroElektronika

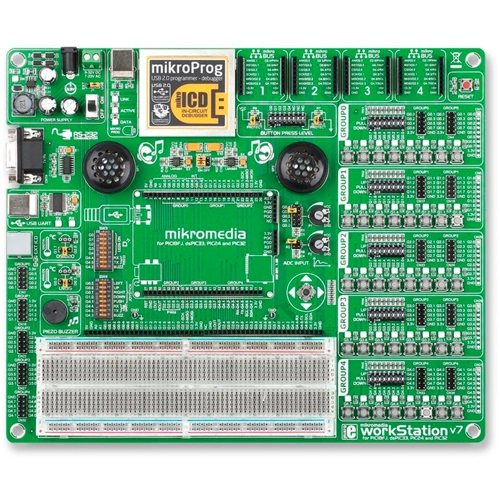

Mikromedia workStation v7 MIKROE-1189
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
152.558 € *
Standard delivery time from the manufacturer is: 4 Weeks
Display size: 2.8",Resolution: 320x240px,Touch Screen: Resistive,Interface: USB-UART, RS-232,Integration: Mounting holes,Power Supply: 5V (via USB) or 9-32V AC, 7-23V DC (via adapter),On-board modules: Sockets for LM35 and DS1820 temperature sensors, ADC inputs, joystick, large breadboard,Applications: Developing and testing firmware, creating prototypes, learning embedded programming,Programming: On-board mikroProg for PIC, dsPIC and PIC32. ICD2/ICD3 connector available for connecting external programmer,Expandability: 4 x mikroBUS sockets, 3 x IDC10 headers for each PORT,Architecture: Multiple,Sound and Audio: Audio amplifier with two speakers, Piezo buzzer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | developer board |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84718000 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
