MIKROE-971 | MikroElektronika
ETH Click MIKROE-971
Unit Price (€ / pc.)
42.9233 € *
Standard delivery time from the manufacturer is: 4 Weeks

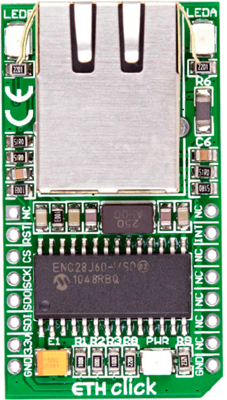

ETH Click, MIKROE-971, MikroElektronika
ETH Click is an accessory board in mikroBus™ form factor. It features ENC28J60, a 28-pin, 10BASE-T stand alone Ethernet Controller with an on-board MAC & PHY, 8K Bytes of Buffer RAM and SPI serial interface. Chip supports programmable automatic retransmit on collision and automatic rejection of erroneous packets. Board contains standard RJ-45 connector, transmit, receive and power LEDs. On-board crystal oscillator ensures stable operation. Board is designed to use 3.3V power supply only.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage | 3.3 V | |
| Version | ETH Click |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
