Relay4 Board MIKROE-603
Active
Product by MikroElektronika at Bürklin Elektronik
Relay4 Board, MIKROE-603, MikroElektronika

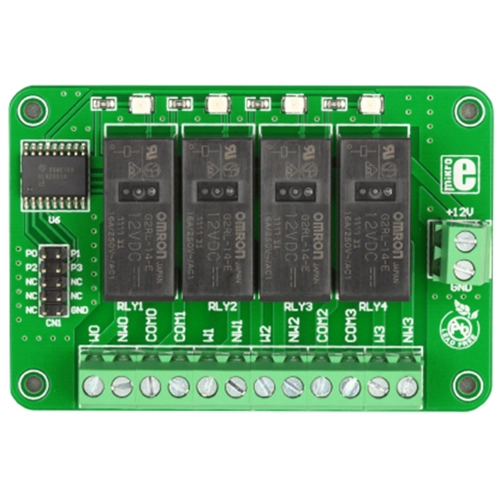

Relay 4 Board is a cost effective solution for adding relays to your device. Single ULN2803 driver IC with 8 Darlington arrays drives each of the four available relays. Screw-terminals allow you clean and easy output relay connectivity, and standard IDC10 connector is used for connection with development boards. Using this board with your MCU you can turn on 220V lightbulbs, DC motors, or any other device that draws up to 16A of current and up to 250V. This board allows your device to jump over the boudary of output digital signals into the world of higher voltages and currents.
| Accessory Type | Relay click |
| Country of origin | RS |
| Customs tariff number | 84733020 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
