2003746 | Microtherm
Freeze protector, Form A (N/O), 5 °C, 10 A, 250 V, 2003746
Order No.: 30G4350
EAN: 4099889142709
MPN:
2003746
R2803EN15T034
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.5442 € *
Standard delivery time from the manufacturer is: 9 Weeks

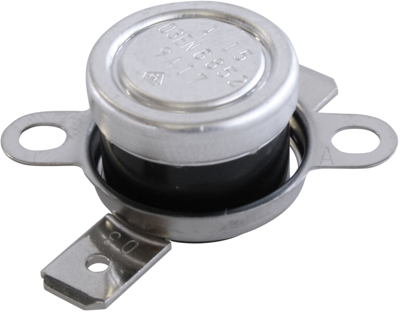

Temperature switch, 2003746, MICROTHERM
The 2003746 is a temperature switch that is a very reliable bimetal technology component, offering a long life time. This product provides high temperature sensibility and can be used in a wide range of white goods, automotive technology, mechanical engineering and kitchen devices.
Applications
- Heaters and heating elements
- Antifreeze
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Nominal temperature | 5 °C | |
| Tolerance | ±3 K | |
| Latching switching function | Form A (N/O) | |
| Rated current | 10 A | |
| Rated voltage | 250 V | |
| Assembly | plug-in connection | |
| Degree of protection (IP) | IP00 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
