2001817 | Microtherm
Temperature switch, Form B (N/C), 170 °C, 10 A, 250 V, 2001817
Unit Price (€ / pc.)
16.3387 € *
Standard delivery time from the manufacturer is: 14 Weeks

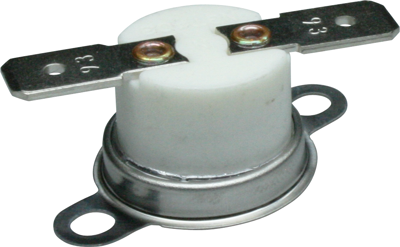

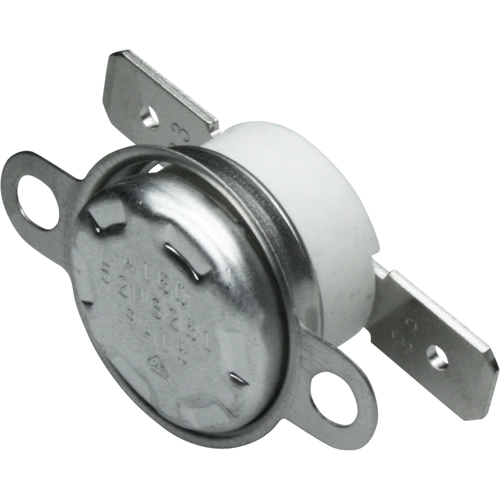

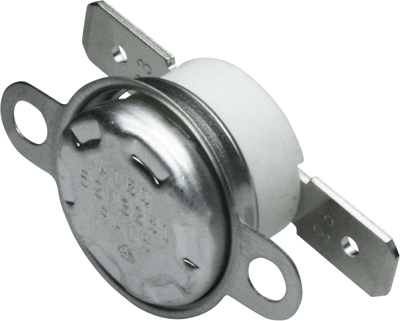

Temperature switch, 2001817, MICROTHERM
The 2001817 is a temperature switch that is a very reliable bimetal technology component, offering a long life time. This product provides high temperature sensibility and can be used in a wide range of white goods, automotive technology, mechanical engineering and kitchen devices.
Applications
- Heaters and heating elements
- Antifreeze
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Nominal temperature | 170 °C | |
| Tolerance | ±5 K | |
| Latching switching function | Form B (N/C) | |
| Rated current | 10 A | |
| Rated voltage | 250 V | |
| Resetting | automatic | |
| Assembly | plug-in connection | |
| Degree of protection (IP) | IP00 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
