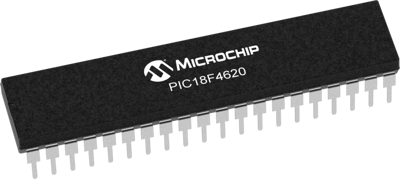

PIC18F4620-I/P | Microchip
PIC microcontroller, 8 bit, 40 MHz, DIP-40, PIC18F4620-I/P
Unit Price (€ / pc.)
13.9825 € *
Available in 5 Days: 147 pcs. - if ordered today
Total Price:
13.98 € *
Price list
Quantity
Price per unit*
1 pcs.
13.9825 €
25 pcs.
12.9115 €
150 pcs.
12.3760 €
*incl. VAT plus shipping costs
Subject to prior sale
Enhanced flash microcontroller, PIC18F4620-I/P, ATMEL
The PIC18F4620-I/P is an enhanced flash microcontroller with 10-bit A/D and nanoWatt technology. This device offers ten different oscillator options, allowing users a wide range of choices in developing application hardware.
Features
- Self-programmable under software control
- Priority levels for interrupts
- Extended watchdog timer
- Single-supply
- In-circuit debug
- Programmable brown-out reset
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flash | |
| Clock frequency | 40 MHz | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Core Size | 8 bit | |
| Number of pins | 40 | |
| Number of I/Os | 36 | |
| Data RAM Size | 3.8 KB | |
| Enclosure | DIP-40 | |
| Processor core | PIC | |
| Memory size | 64 KB | |
| Voltage | 4.2-5.5 V | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423190 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
